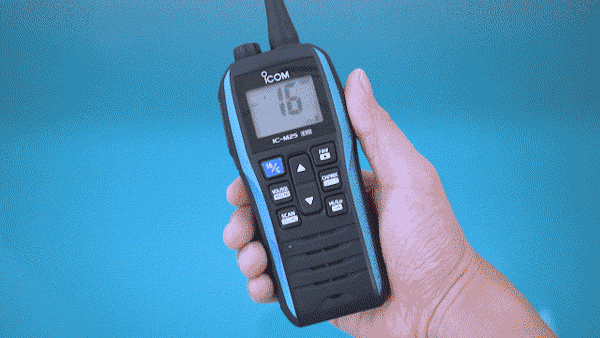

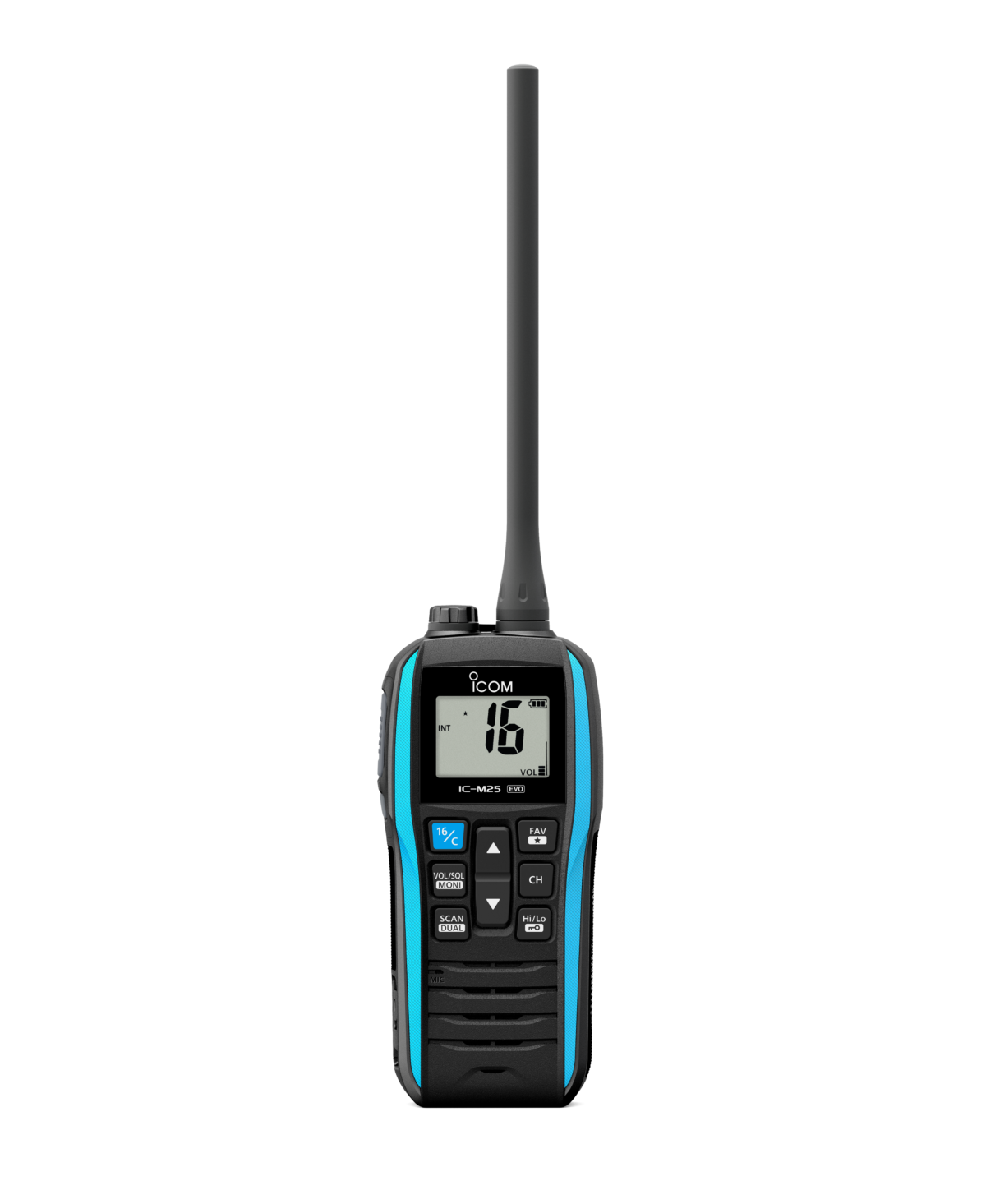

IC-M25EURO EVO

Buoyant VHF Radio with a Fresh Design for Marine Adventures.

📖 Description
  • Evolution of the Popular Marine Radio
    The IC-M25EURO EVO is an upgraded model of the extremely popular IC-M25EURO floating VHF marine handheld transceiver. The IC-M25EURO EVO is designed with an improved grip texture for easier handling, and larger buttons for easier operation. Moreover, it has adopted a new power-saving Eco Mode which will allow approximately about 14 hours of operation, which is about a 30% improvement. Furthermore, a USB Type-C™ charging port is standard. The IC-M25EURO EVO still retains its compact and lightweight body, and industry leading Float’n Flash™ and submersible design.

  • Float’n Flash™
    If the IC-M25EURO EVO is accidentally dropped into water, it floats, flashes, and emits an alarm, reducing the risk of loss during water activities. Icom has led the marine handheld radio industry with this technology since the introduction of the IC-M33 in 2006.



  • Enhanced Practical Design

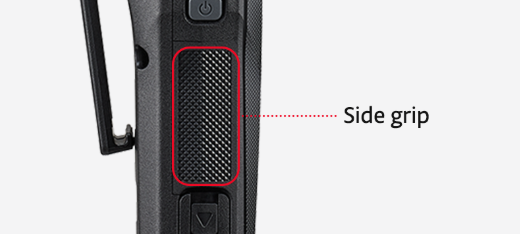

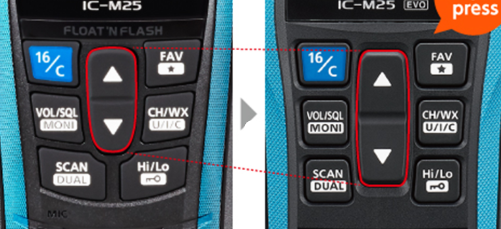

    The IC-M25EURO EVO is built for practicality, featuring an improved side grip texture for a secure, anti-slip hold even with wet hands. Enlarged user-friendly buttons ensure easy operation for channel navigation.

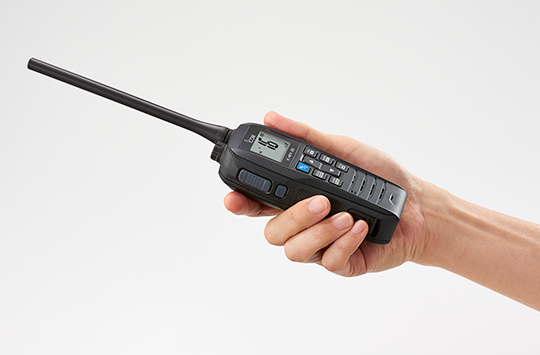

  • Lightweight and Compact Body

    Weighing just 228 g and with a slim body depth of 31.2 mm, the IC-M25EURO EVO is lightweight and easy to carry for extended periods. Its compact body allows for seamless one-handed operation during activities.



  • Power Saving Eco Mode Realizes 14 Hours Operation

    The IC-M25EURO EVO offers up to 14 hours* of extended operation with its power-saving Eco Mode. By reducing transmit power to 2.5 W, the operating time increases by approximately 30% compared to the standard 5 W output. This long battery life makes it ideal for your adventures.

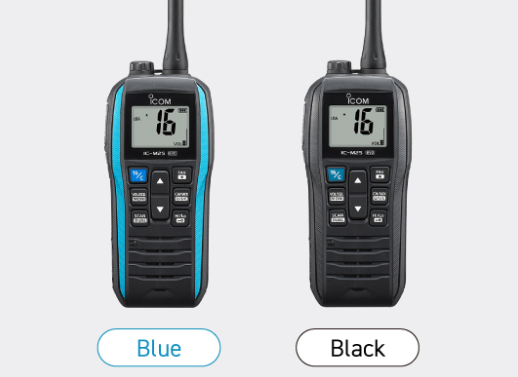

  • Two Colour Selections

    The IC-M25EURO EVO has two colour options: Black or Marine Blue. You can choose one to match your style and adapt to different operating conditions. Whether you prefer the versatility of Black or the high visibility of Marine Blue, these choices ensure both functionality and style on the water.



  • USB Type-C™ Charging Port

    Adopting a USB Type-C™ port, which is commonly used worldwide, it charges the battery pack in approximately three hours. Additionally, charging with portable batteries* (user supplied), provides added convenience and mobility.



  • AquaQuake™

    The AquaQuake™ draining function prevents audio degradation from a water-logged speaker. This function removes water from the speaker grill by vibrating the speaker cone. Even if you get splashed by rain or waves, you can quickly restore the clear audio with AquaQuake™.



  • Loud and Clear Audio

    With a powerful 700 mW audio output, the IC-M25EURO EVO delivers loud and clear sound, ensuring reliable communication even in noisy environments with engine noise or wind interference.


    Other Features

    • IPX7 waterproof construction (1 m depth of water for 30 minutes)
    • 4-step battery life indicator
    • 2-step power save function
    • Dual/Tri-watch functions*
    • Instant access to CH 16 or programmable call channel
    • Favorite channel function
    • Monitor function opens noise squelch
    • Auto scan function


Menu a tendina PDF

Downloads

📘 Brochures
📖 CE - Declaration of conformity
📑 Manuals
📜 MED Certificates

Gate Plus Gestione Visitatori

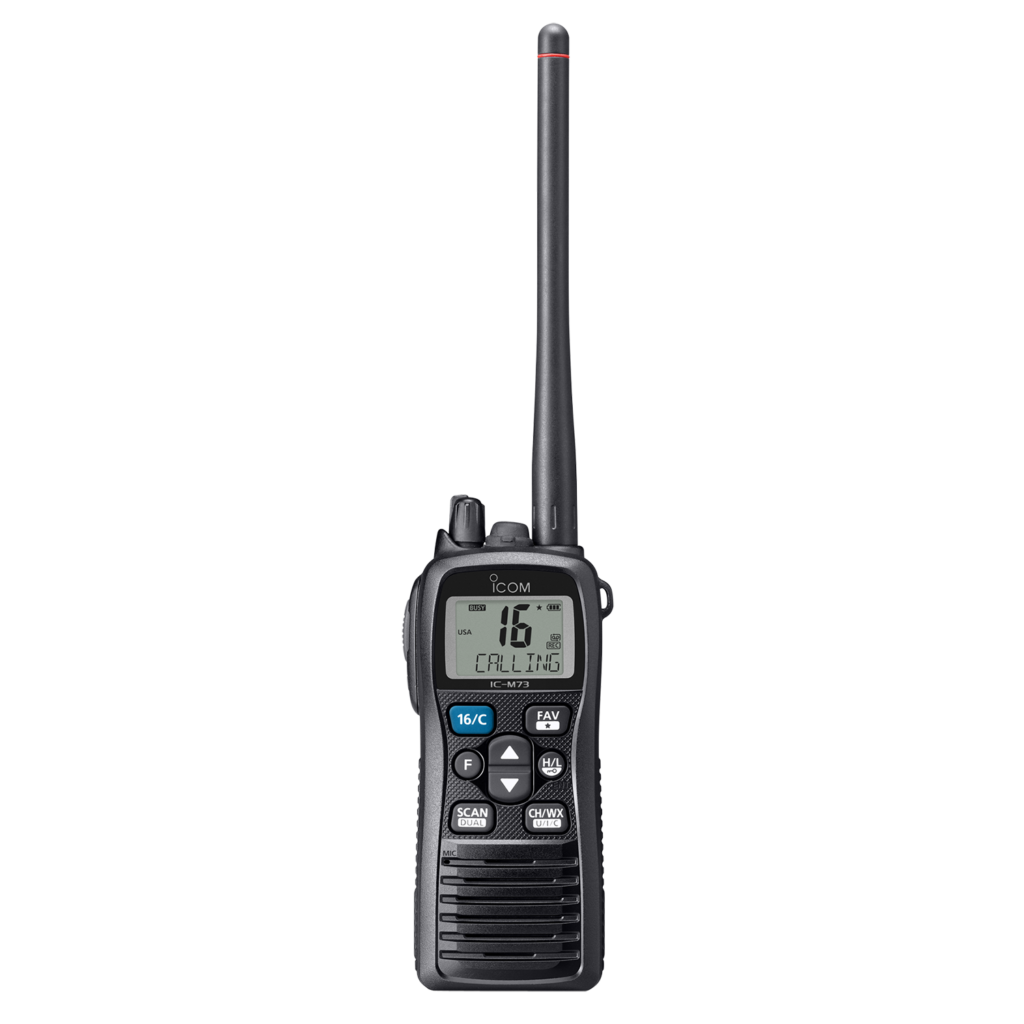

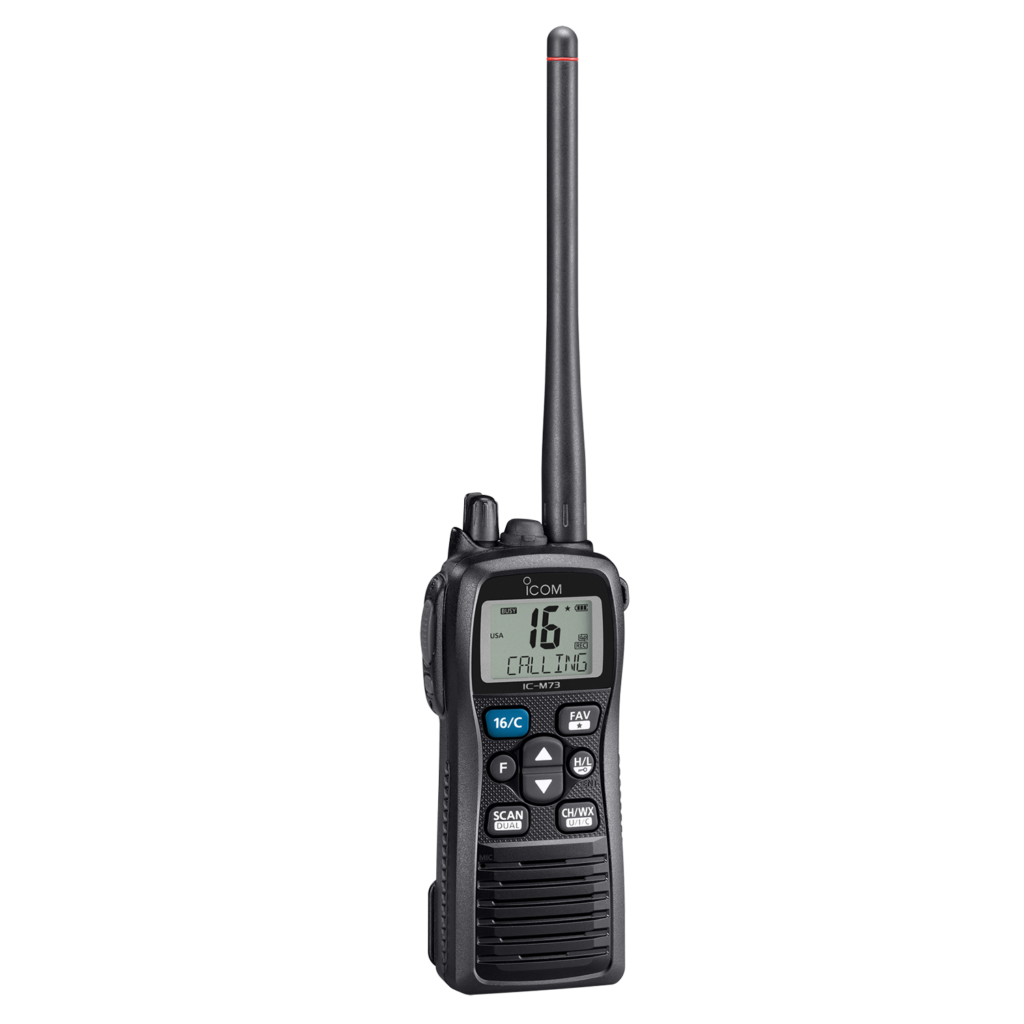

IC-M73EURO

Slim, Stylish, Powerful VHF with Professional Features.

📖 Description
  • Two transceiver versions available:

    IC-M73EURO “Plus” (#77)
    IC-M73EURO (#67)


  • Last Call Voice Recording*

    The last call voice recording function automatically saves the last incoming call for 1 minute. You can also start recording manually. You will not miss an important call.


  • Active Noise Cancelling Technology*

    The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. You will hear better and clearer!


  • Bass Boost Function*

    The signal processing technology emphasizes low-pitched sound to provide a rich bass sound for both transmit and receive signals. *For “Plus” version only.


  • 700 mW Loud Audio

    The IC-M73EURO uses a BTL (bridge-tied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound.


  • 6 W RF Output Power

    The IC-M73EURO’s 6 Watts of transmit power will provide extended communication range for the user. A large capacity Lithium-Ion battery, BP-245H allows for 16 hours of operation, under normal conditions*. * Typical operation with 5:5:90 duty ratio. 18 hours for basic version.


  • IPX8 Submersible Plus™ Waterproofing

    The IC-M73EURO continues to offer Icom’s best waterproof protection. The radio has been tested to survive after being submersed in 1.5 m (4.9 ft) depth of water for 30 minutes.


  • Slim, Hourglass Body Wide Viewing Angle LCD

    The IC-M73EURO has a stylish, ergonomic design. A durable and rugged body provides user-friendly operation and long life. A wide viewing angle, high intensity LCD offers bright, easy to read characters.


    • Other Features

    • AquaQuake™ prevents audio degradation from a water-logged speaker
    • 4 level battery indicator
    • Instant access to Ch 16 or programmable call channel
    • ATIS channel mode*

    *The channel group switchover from INT to ATIS requires a corresponding activation by the specialist dealer. An assigned ATIS code is to be programmed. Please observe the applicable guidelines for the use of hand-held radios in the area of inland waterway radio.


  • Supplied accessories

    AC adapter, BC-242 / Rapid charger, BC-210 / Battery pack, BP-245H (#15)*/ Belt clip, MB-103 / Antenna, FA-S64V** / Hand strap
    * For technical reasons, do not use BP-245H (#15), with [B] marking, with former available multiple charger BC-197.
    ** May differ depending on version.

Menu a tendina PDF

Downloads

📘 Brochures
📖 CE - Declaration of conformity
📑 Manuals
📜 MED Certificates




          Gate Plus Daicon controllo accessi

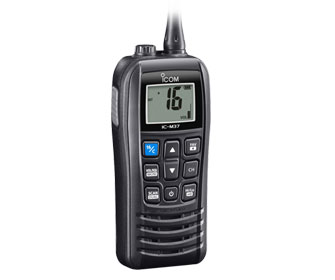

IC-M37E

6 Watt VHF with Float’n Flash and 12 Hours of Operation.

📖 Description
  • Evolution of the Popular Marine Radio
    Large Keys and Easy-to-Grip Design 6 W RF Output Power 700 mW Audio Output

    More than 12 Hours* of Long-Lasting Operating Time (with BP-296)
    * TX : RX : Stand-by = 5 : 5 :90 Channel History Function Stores the Last Five Channels Used for Easy Recall


  • Float’n Flash Function

    The radio flfloats with a flflashing LED light to help you retrieve it from the water.


  • And more

    IP57 dust-protection and waterproof protection (1 m depth of water for 30 minutes)| Low Battery Alert function | Voice Loud and Mute function enables to temporary maximize/mute the volume | AquaQuake™ function prevents audio degradation from a water-logged speaker | Dualwatch and Tri-Watch functions | Favorite Channel function | Instant access to channel 16 and the Call channel | BP-296 user replaceable Li-ion battery pack supplied | Inland navigation radio (ATIS) possible if an assigned ATIS code is programmed (once programmable by the end user; Usable only where permitted)


  • Supplied accessories

    BP-296 battery pack | BC-235 desktop charger | BC-217SE AC adapter | FA-SC59V antenna | MB-133 belt clip | Hand strap


  • Optionales Zubehör

    Battery pack BP-297 For AAA (LR03)×3 alkaline cells.* | Waterproof Handmicrophone (IPX7) HM-213. Floats in water with the radio.
    *Output power: 1 W. The IC-M37E floats when used with most common brand AAA batteries. Battery weight varies by manufacturer.
    Please check your IC-M37E for buoyancy in a shallow area when using AAA batteries.

Menu a tendina PDF

Downloads

📘 Brochures
📖 CE - Declaration of conformity
📑 Manuals
📜 MED Certificates

Gate Plus Gestione Visitatori

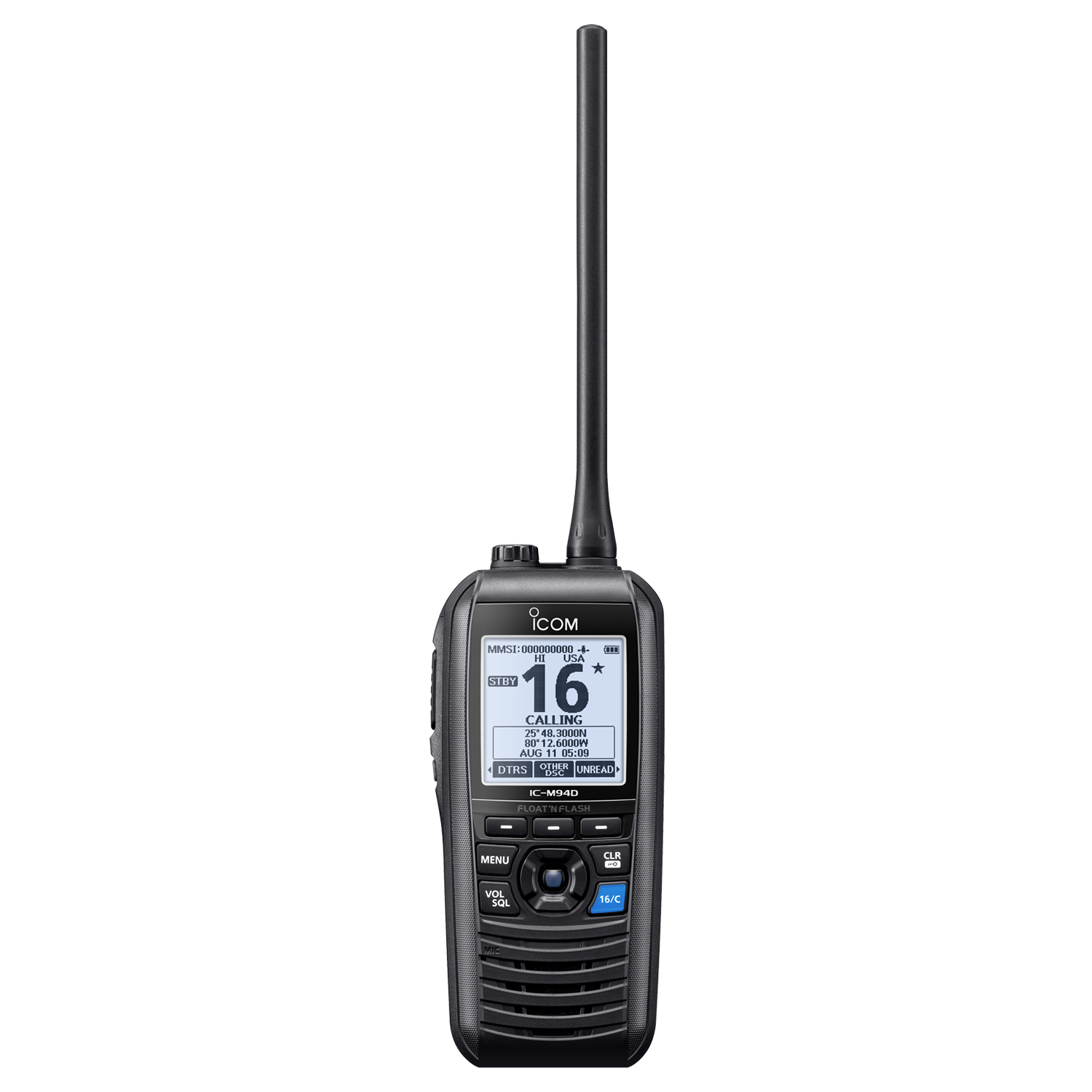

IC-M94DE

VHF Marine Transceiver with DSC & AIS. The fully equipped flagship in the range of Icom Marine handhelds!

📖 Description
  • AIS Receiver and DSC in One Package

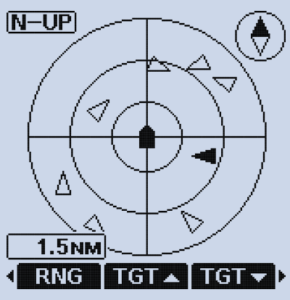

    AIS receiver and DSC (Class-H) function add further assurance for safety at sea. With the integrated AIS receiver, vessel traffic information is shown on the display. The AIS target call function allows you to easily set up a DSC individual call. Distress calls can be made with the rear panel button.

  • 6 W RF Output Power and 10 Hours of Operating Time

    The IC-M94DE’s 6 watts of transmit power provides extended communication range for the user. The supplied 2400 mAh (typical) high capacity Li-ion battery, BP-306 provides 10 hours of operating time, under normal conditions*.
    * Approximate, typical operation with 5:5:90 duty ratio.


  • Class-Leading 1500 mW Audio Output

    Icom’s custom high-power capacity speaker delivers a loud 1500 mW (typical) audio output with improved acoustic sound clarity for noisy maritime environments.


  • Simplified Navigation Function

    The Navigation function guides you to a specified waypoint. You can assign up to 50 favorite fishing spots or destinations as waypoints.



  • Float’n Flash and MOB Auto Set Functions

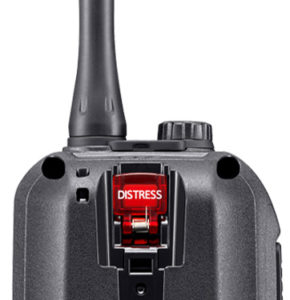

    The radio floats and the LCD screen, keys and rear panel Distress button flash to help you retrieve it from the water. Pressing the distress button while Float’n Flash is working will transmit the MOB distress signal, rather than the plain undesignated one for better protection of sailors.


    • Other Features

    • Integrated GPS receiver
    • Active noise canceling technology
    • IPX7 submersible (1 m depth of water for 30 minutes)
    • Dualwatch and Tri-watch functions
    • Favorite channel function
    • Supports 4-digit channels
    • AquaQuake™ prevents audio degradation from a water-logged speaker
    • MMSI code can be entered by user (once); after that DSC functions are available
    • ATIS code* can be entered by user (once) in menu; after that ATIS channel group is available
      * depending on version and for usage where allowed

  • Supplied Accessories

    BP-306 battery pack | BC-251 battery charger | AC adapter | MB-133 belt clip | FA-SC59V Antenna | Hand strap


Menu a tendina PDF

Downloads

📘 Brochures
📖 CE - Declaration of conformity
📑 Manuals
📜 MED Certificates



       Gate Plus Daicon controllo accessi

Marine and PMR Hybrid for Professional Use

VHF Marine Transceiver

📖 Description

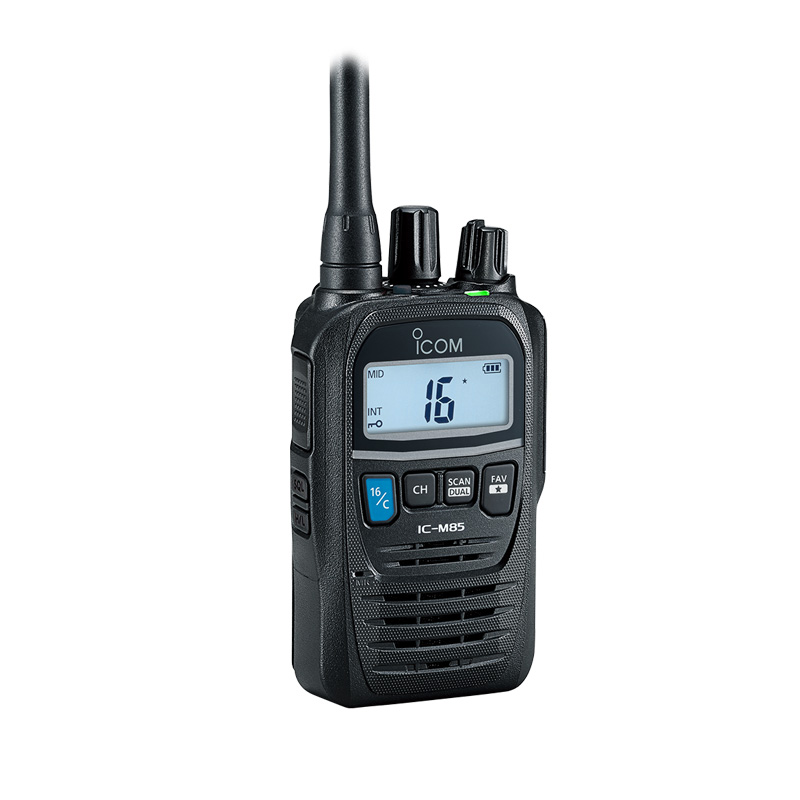

  • The IC-M85E is our hybrid model in the model range. In addition to the existing marine radio channels, the device can also be programmed by the specialist dealer with the company radio channels assigned to your company or your organization.

  • Compact and Lightweight

    The IC-M85E is a very compact (W×H×D: 56 × 92 × 29 mm) and lightweight (weight: 246 g (with BP-294, FA-SC58V and MBB-3)) commercial grade marine and land mobile hybrid radio.


  • Covering 136–174 MHz PMR Frequency

    In addition to VHF marine channels, the IC-M85E covers 136–174 MHz PMR channels. Up to 100 programmable channels are available for PMR use. Each channel is programmable with CTCSS and DTCS tone.


  • 700 mW Powerful Audio

    Despite its compact body, the IC-M85E delivers 700 mW of loud audio. Clear communications is vital in noisy environments.


  • Automated Emergency Alarm

    The IC-M85E has three emergency related functions: the MOB Alarm, Man Down and Lone Worker functions. If one of these functions are activated, the radio automatically makes an emergency alarm.


  • Instant Operation with Multi-Function Button

    Channel group changing (marine ⇔ PMR) or the scrambler function ON/OFF can be assigned in the multi-function button on the top panel*. The Key lock function can be activated by holding the button.


  • IP67 and MIL-STD Rugged Construction

    The IC-M85E is built durable to endure 1 m submersion for 30 minutes and dust-tight protection. The radio also passes MIL-STD-810 specifications.

  • And More

    AquaQuake™ prevents audio degradation from a water-logged speaker
    Internal VOX capability for hands-free operation
    21 hours of long battery life (TX: RX: Standby=5:5:90.)
    5 W output power
    The self check function checks internal temperature, and connected battery voltage (over voltage detection)
    Monitor function
    Priority scan function
    Dual/Tri-watch function for monitoring CH16 and/or call channel
    Favorite channel function for quick access to often used channels


  • Supplied accessories

    BP-294 battery pack
    BC-227 rapid charger
    BC-123S* AC adapter
    FA-SC58V antenna
    MBB-3 belt clip
    Hand strap


  • Registration / reference number. the Federal Network Agency

    On the basis of changed European regulations, no allocation of such numbers by the competent national authority takes place any more. However, as usual, you can rely on our products to comply with European directives.
